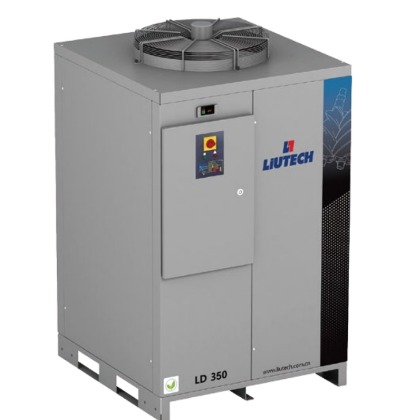

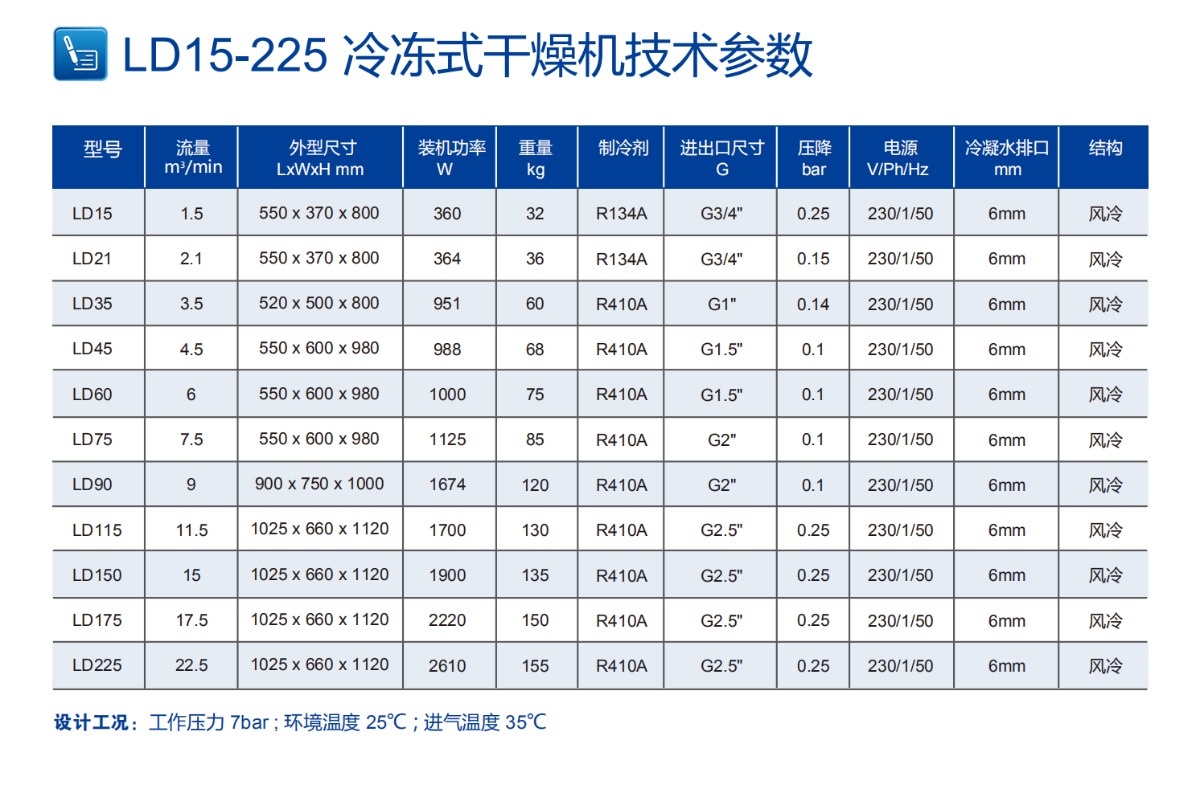

Dryer system description:
1. The refrigeration compressor
, refrigeration compressor is a closed rotary compressor, its compressed refrigerant temperature close to the condensing temperature, refrigerant releasing heat to the air in the condenser, condense into liquid.
• imported mitsubishi refrigeration compressor. The compressor can effect comparing is high, low noise, long service life.
2. Air cooled condenser
• condenser is composed of aluminum finned tubes, the dryer with cooling fan cooling. Condenser is used to remove the heat from the refrigerant and heat emissions into the environment, so it condense the refrigerant.
3. The motor fan
• condenser fan motor driven by efficient motor, take away the refrigerant in the condenser heat, to achieve the purpose of condensing refrigerant.
, in order to ensure the cooling effect and low noise, LR1 - LR16 compressor using a low speed running the radial flow of the main cooling fan.
4. The evaporator
Evaporator is air - air heat exchanger (10) of the final ring, where compressed air is refrigerant freezing to near freezing point temperature in low temperature. Refrigerants in the process of evaporation.
5. Gas water separator
, isolated from the compressed air is cooled liquid water and is discharged through the liquid water drain valve will be.
6. Drain valve
• discharge by gas water separator separation of condensed water from compressed air.
7. The expansion valve
Flow of refrigerant from the condenser, liquid after expansion valve, pressure decreases, the part of the liquid will be converted into steam.
8. Dry filter
, the filter is used for remove the moisture and impurities in the refrigerant, ensure dryer reliable operation.
